Mazda’s brand new CX-9 to Feature New 2.5-litre Direct-Injection Turbocharged petrol Engine

Mazda cx-9

Mazda Motor Corporation has enhanced its SKYACTIV-G engine series with the range-topping SKYACTIV-G 2.5T.

This 2.5-litre direct-injection turbocharged petrol engine powers the Brand-New CX-9 midsize three-row crossover SUV that will go on sale starting from North America in spring 2016.

The SKYACTIV engine series aims to offer customers a combination of outstanding fuel economy and excellent dynamic performance in everyday driving situations.

Mazda’s development philosophy is to offer this combination across all vehicle lines, using the most appropriate engine displacement and simplest configuration of technologies for a given vehicle size.

Developed in line with this philosophy and based on the naturally aspirated SKYACTIV-G 2.5 featured in the Mazda6, SKYACTIV-G 2.5T is the first turbocharged engine in the SKYACTIV-G series.

It delivers exceptional catalogue and real-world fuel economy, excellent response without turbo lag¹, and linear and powerful acceleration in the low- to mid-rpm range where CX-9 drivers spend the vast majority of their time². Maximum torque is 310 ft-lb, comparable with a naturally aspirated 4-litre petrol engine.

Traditionally, turbocharged engines have suffered from poor dynamic performance at low rpms, including turbo lag, and disappointing real-world fuel economy. SKYACTIV-G 2.5T overcomes these problems with the Dynamic Pressure Turbo, the world’s first turbocharging system that can vary the degree of exhaust pulsation depending on engine speed, and a cooled exhaust gas recirculation (EGR) system that allows the engine to maintain the ideal air-fuel ratio³ (λ=1) over a wider output range.

Mazda will continue to offer all customers driving pleasure and outstanding environmental performance through its SKYACTIV engines which aim to achieve the ideal in combustion. The company hopes to enrich people’s lives and become a brand that maintains an emotional connection with customers.

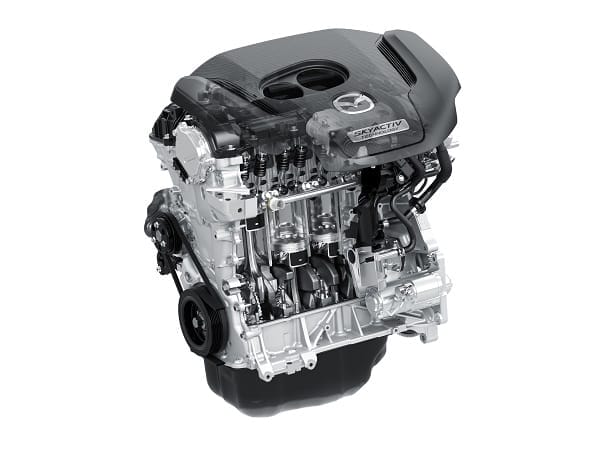

mazda cx-9 engine

Features of SKYACTIV-G 2.5T

High compression ratio
Mazda engineers achieved a compression ratio 10.5:1, one of the highest for any turbocharged engine with an 89-mm bore size that can run on regular petrol⁴.

Dynamic Pressure Turbo
SKYACTIV-G 2.5T is the world’s first turbocharged engine with the ability to change the degree of exhaust pulsation depending on engine speed.

At low rpms (below 1620 rpm), the volume of the exhaust ports is reduced by closing a series of valves located just before the turbine that drives the turbocharger. This reduces interference between exhaust pulses and maximises the energy of each pulse to obtain a high turbine driving force.

At higher rpms there is sufficient energy in the exhaust flow and the valves open, allowing the turbine to be driven by a steady flow of exhaust gases as in a traditional turbocharger.

Whereas existing variable turbochargers adjust the speed or direction of exhaust gas flowing into the turbine, Dynamic Pressure Turbo is a unique technology that varies the degree of exhaust pulsation.

Cooled Exhaust Gas Recirculation (EGR)
This system takes some of the inert exhaust gas that results from the combustion process and reduces its temperature by passing it through a cooler before introducing it back into the engine’s air intake.

This lowers the temperature of combustion in the engine, preventing knocking, expanding the range in which the engine can maintain the ideal air-fuel ratio and reducing the need to retard ignition timing.

Inherits SKYACTIV-G principals of efficient combustion
SKYACTIV-G 2.5T is based on the naturally aspirated SKYACTIV-G 2.5 and features the same bore, stroke and bore pitch.

Parts of the fuel system, such as the fuel pump and fuel injection system are also shared, helping SKYACTIV-G 2.5T to achieve the highly efficient combustion for which SKYACTIV-G engines are known.

SKYACTIV-G 2.5T Specifications (Based in-house measurements)

Inline 4-cylinder 2.5-liter direct-injection turbocharged petrol engine
Displacement:                                  2488 cc
Bore x Stoke:                                  89.0mm x 100.0 mm
Compression Ratio:                         10.5:1
Maximum Output (net):                    227HP (169kW) /5,000rpm5
Maximum torque (net):                     310ft-lb (420Nm) /2,000rpm

Mazda CX-9
